FIXED MOUNTS
PLB-CE946-01XLD
Enhance your display experience with our versatile and sturdy universal mount, supporting up to 50kg/110lbs. Perfectly suited for most 37″-70″ flat panel displays, it offers seamless 360° rotation for effortless landscape or portrait viewing.
Features:
- Telescoping Height Adjustment: for the optimal viewing height
- Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Cable Management: keeps everything organized
Specifications:
|
Product Category: |
TV Ceiling Mount |
|
Rank: |
Standard |
|
Material: |
Steel |
|
Surface Finish: |
Powder Coating |
|
Color: |
Matte Black |
|

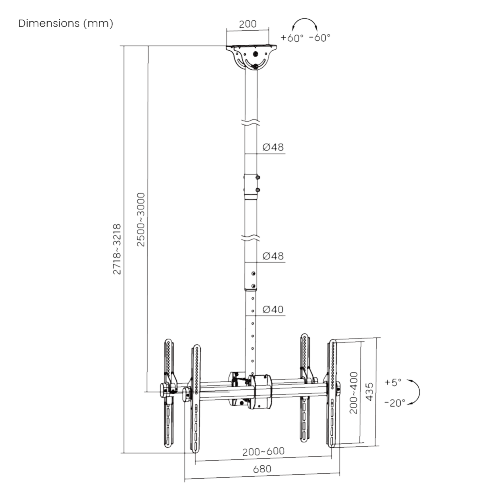

Dimensions: |
680x435x3218mm (26.8″x17.1″x126.7″) |
|
Fit Screen Size: |
37″-86″ |
|
Fit Curved TV: |
Yes |
|
Mounting Hole Pattern: |
VESA & Universal |
|
VESA Compatible: |
200×200,400×200,300×300,400×400,600×400 |
|
Max. Mounting Hole: |
600×400 |
|
Weight Capacity: |
45kg x2 (99lbs x2) |
|
Strength Tested: |
3 Times Approved |
|
Profile: |
2500~3000mm (98.4″~118.1″) |
|
Tilt Range: |
＋5°～-20° |
|
Swivel Range: |
+180°~-180° |
|
Screen Level: |
+3°~-3° |
|
Screen Freely Tilting: |
No |
|
Installation: |
Ceiling Mounted |
|
Panel Type: |
Detachable Panel |
|
Wall Plate Type: |
Fixed Wall Plate |
|
Cable Management: |
Yes |
|
Bubble Level: |
No |
|
Certification: |
RoHS |
