Table Top TV Stand
LCD-CM344
Enhance your display experience with our versatile and sturdy universal mount, supporting up to 50kg/110lbs. Perfectly suited for most 37″-70″ flat panel displays, it offers seamless 360° rotation for effortless landscape or portrait viewing.
Features:

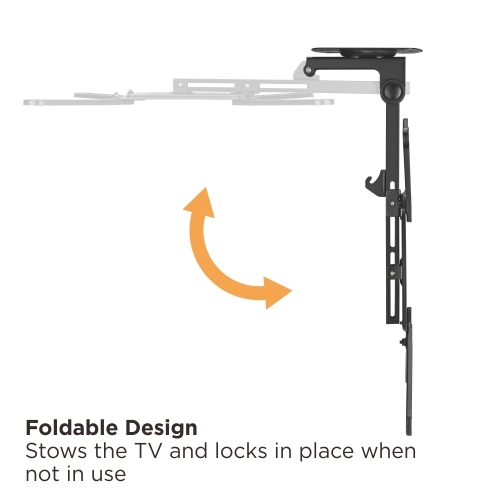

- Folding Design: saves space (keeping the screen and arm out of the way when not in use)

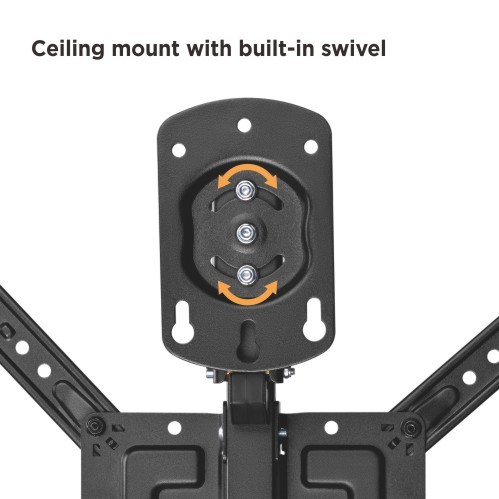

- Swivel Ability: for multiple screen viewing angles
- Flexible Sliding Rails: for adjusting screen height
Specifications:
|
Product Category: |
TV Ceiling Mount |
|
Rank: |
Standard |
|
Material: |
Steel |
|
Metal Sheet Thickness: |
VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.059″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet) |
|
Pipe Size: |
30x20x1.5mm Square Steel Tube (1.2″x0.79″x0.059″ Square Steel Tube) |
|
Surface Finish: |
Powder Coating |
|
Color: |
Fine Texture Black |
|

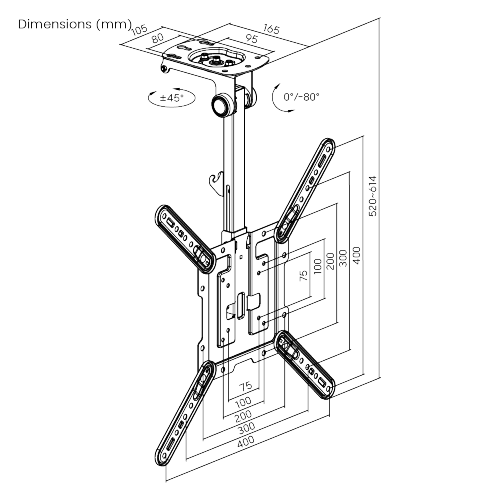

Dimensions: |
614x435x165mm (24.2″x17.1″x6.5″) |
|
Fit Screen Size: |
23″-55″ |
|
Fit Curved TV: |
Yes |
|
Mounting Hole Pattern: |
VESA Only |
|
VESA Compatible: |
75×75,100×100,100×200,200×100,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,400×400 |
|
Max. Mounting Hole: |
400×400 |
Weight Capacity:
20kg (44lbs)
Strength Tested:
3 Times Approved
Profile:
83mm (3.3″)
Tilt Range:
0/-80°
Swivel Range:
+45°~-45°
TV Height Range:
min520~max614mm (min20.5″~max24.2″)
Installation:
Ceiling Mounted
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Direction Indicator:
Yes
Cable Management:
No
Bubble Level:
No
Accessory Kit Package:
Normal/Ziplock Polybag,Compartment Polybag
