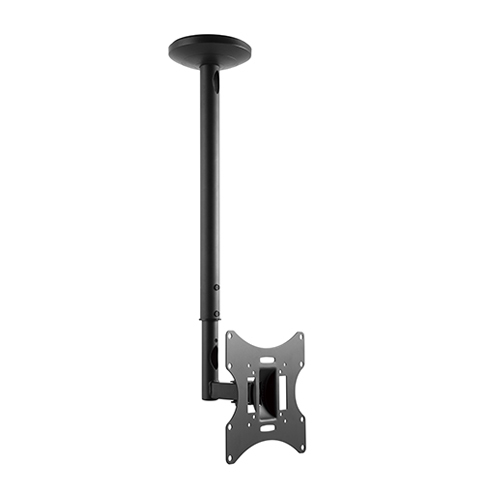

Ceiling Mount
LCD-504A
Enhance your display experience with our versatile and sturdy universal mount, supporting up to 50kg/110lbs. Perfectly suited for most 37″-70″ flat panel displays, it offers seamless 360° rotation for effortless landscape or portrait viewing.
Features:
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
- Height Adjustable TV Mount: for the best viewing experience
- Decorative Covers: for a more elegant look
- Cable Management: keeps everything organized
Specifications:
|
Product Category: |
TV Ceiling Mount |
|
Rank: |
Economy |
|
Material: |
Steel |
|
Surface Finish: |
Powder Coating |
|
Color: |
Matte Black |
|
Dimensions: |
138x160x968mm (5.4″x6.3″x38.1″) |
|
Fit Screen Size: |
23″-42″ |
|
Fit Curved TV: |
No |
|
Mounting Hole Pattern: |
VESA Only |
|
VESA Compatible: |
75×75,100×100,200×100,200×200 |
|
Max. Mounting Hole: |
200×200 |
|
Weight Capacity: |
30kg (66lbs) |
|
Strength Tested: |
3 Times Approved |
|
Profile: |
608~858mm (23.9″~33.8″) |
|
Tilt Range: |
＋20°～-20° |
|
Swivel Range: |
+90°~-90° |
|
Installation: |
Ceiling Mounted |
|
Panel Type: |
Fixed Panel |
|
Wall Plate Type: |
Fixed Wall Plate |
|
Cable Management: |
Yes |
|
Bubble Level: |
No |
